Electric Vehicle
ØAn electric vehicle (EV) is a vehicle that uses one or
more electric motors or traction motors for propulsion.
ØAn
electric vehicle may be powered through a collector system by electricity from
off-vehicle sources, or may be self-contained with a battery, solar
panels, fuel cells or an electric generator to convert fuel
to electricity.
ØEVs
include, but are not limited to, road and rail vehicles, surface and underwater
vessels, electric aircraft and electric spacecraft.

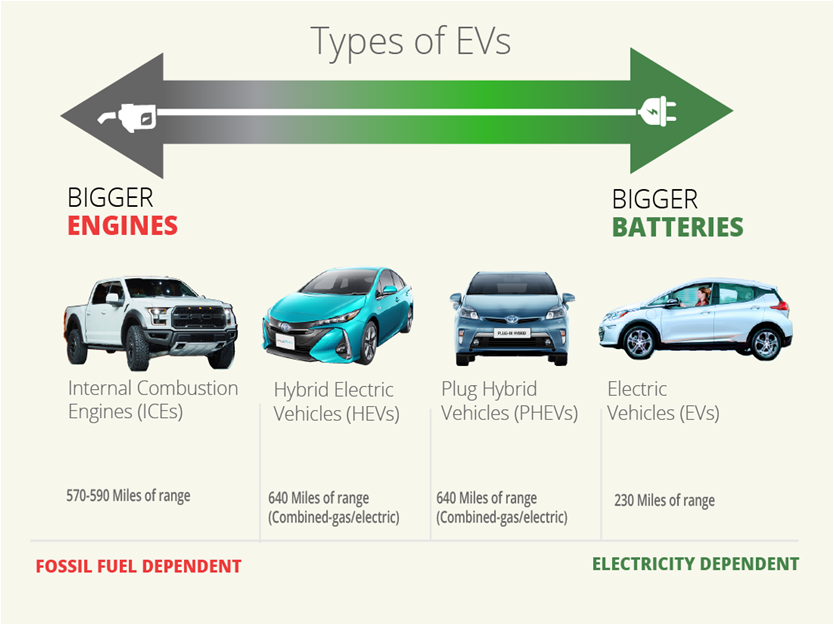

¢Type of
EVs
1. Hybrid Electric Vehicles (HEVs)
1. Hybrid Electric Vehicles (HEVs)
ØHEVs are powered by
both petrol and electricity
ØHEVs start off using
the electric motor,
ØThe petrol engine
cuts in as load or speed rises
¢
¢2.
Plug-in Hybrid Electric Vehicles (PHEVs)
ØPHEVs
also known as Extended-Range Electric Vehicles (EREVs), this type of EV is
powered by both petrol and electricity
ØThis
technology depends on choice of primary energy source
¢
¢3.
Battery Electric Vehicles (BEVs)
ØBEVs are
fully electric vehicles, meaning they are only powered by electricity and do
not have a petrol engine, fuel tank or exhaust pipe
¢
¢

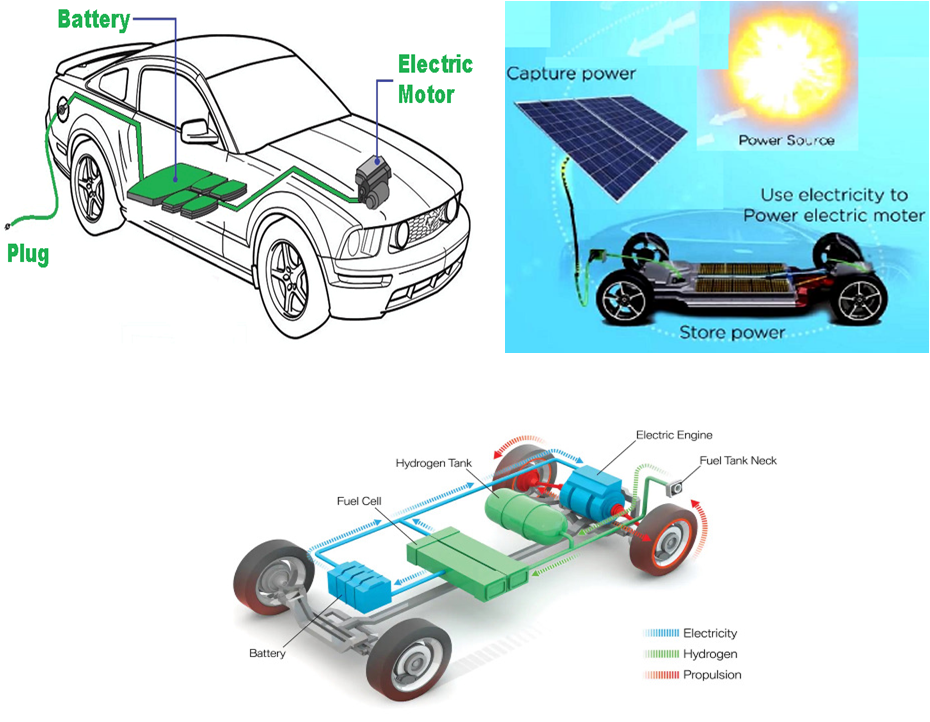

¢Main
Parts of EV
ØMotor – SRM,
BLDC, PMSM
ØBattery –
Lead-acid, Li-Ion, Li-Po packs, Super Capacitors
ØDC-DC
Converter
ØBattery
Management System (BMS)
ØPower
Control Unit (PCU)
ØPower
Train System

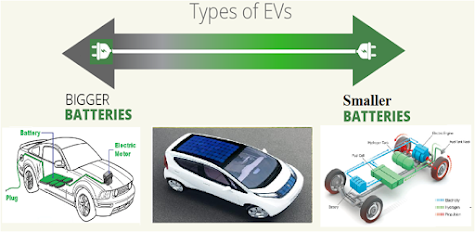

¢Solar EV
ØEco-friendly
and Quiet
ØEnergy
availability
ØNo
fuel cost
ØSafe
and proven
ØLow
efficiency
ØDesign
challenges
ØExpensive
batteries
ØEnergy
storage capacity
¢Fuel-Cell
EV
ØEco-friendly
and Quiet
ØH2
- Not readily available
ØHigh
fuel cost & infrastructure
ØSafety
(Dangerous than LPG/CNG)
ØHigh
efficiency
ØReliable
with small size
ØCost
per mile is high ($0.21)
ØStorage
Tanks
Ø
Ø
Ø
¢Loading
Specifications
(Report according to kitchen cell)
(Report according to kitchen cell)
¢Electric
Vehicle
¢Body Requirements
vTrolley – Carrier
7 * 7 (enclosed on 4 sides)
or
6 * 6 (enclosed on 2 sides)
¢Core Specifications
vMotor –
3KW @ 3600 rpm
vBattery – 48V, (20Ah
with Li-Ion , 50 Ah with Lead-acid types )
vTorque –
32 Nm
vCalculated
range: 10 Kms
vAverage
Speed: 20 Km/hr
